PF1315 Impact Crusher Suitable for Customer Requirements in Building Construction

Product Categories

Shanghai Dingbo Heavy Industry Machinery Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

PF1315 Impact Crusher Suitable for Customer Requirements in Building Construction

Model NO. : PF1214/PF1315/PF-1515/PF-1520/PF-1007/PF1010

Inlet Size : 300-700mm

Condition : New

Warranty : 1year

After-sales Service : 1year

Capacity(T/H) : 35-550tph

Product Name : Impact Crusher

Quality : Advanced Technology

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000

Installation : Under Technical Guidance

After-Sale Service : Problems Within 48 Hours

Transport Package : Normal Packing Ls in Wooden Cases

Specification : Standard

Trademark : Dingbo Machinery

Origin : Shanghai, China

HS Code : 8474209000

Supply Ability : 100sets/Month

Type : Impact Crusher

Motor Type : AC Motor

Motor Power : 55-440kw

Application : Stone,Ore,Sand

Materials : Ore

Outlet Size : 5-40mm

Customization : Available | Customized Request

Place of Origin : China

MOQ : 1

Packaging Details : Normal Packing Ls in Wooden Cases

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment,

Contact Now

PF Impact Crusher

PF1315 Impact Crusher Suitable for Customer Requirements in Building Construction

Max.Feed size: 350mm
Capacity: 35-550t/h
Power: 55-440kw
Complete specifications
There is always a suitable solution for you

Send Message or Chat Now for Latest price!!!

Working Principle
PF Impact Crusher breaks materials with impact force. When working, driven by a motor, the rotor rotates at a high speed. When materials enter the working area of hammer, they are crushed under the high-speed shock. Then broken materials are thrown onto the lining plate for another crushing. Finally, qualified materials are discharged from the opening. Adjusting the gap between the impact rack and rotor rack can change the granularity and shape of finished products.

Model	Rotor Size*length (mm)	Feed Opening Size (mm)	Max. Feeding Size (mm)s	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
PF-1007	Φ1000×700	400×730	300	35-50	55	2400×1558×2660
PF1010	Φ1000×1050	400×1080	350	50-80	4-75	2455×2086×2800
PF1210	Φ1250×1050	400×1080	350	60-120	6-110	2590×2050×2800
PF1214	Φ1250×1400	400×1430	350	80-160	6-132	2590×2400×2810
PF1315	Φ1300×1500	860×1520	350	120-260	6-200	2930×2760×3050
PF-1515	Φ1500×1500	1145×1520	≤500	220-280	280kw	2690×2049×2698
PF-1520	Φ1520×2000	1245×2050	700	300-550	315-440	3581×3560×3865

Market distribution

PF1315 Impact Crusher Suitable for Customer Requirements in Building Construction

1. Are you manufacture or trading company?
We are factory, established in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Our servises
Pre-sales Service: The wide product range enables us to provide our customers with stand-alone machines orcomplete processing plants.Based on our customers' request and budget, our experts makeefficient , reliable solutions.Following customers' order we produce strictly, what's more, beforeplacing the order every customer has the chance to visit DBM working machines or complete plantin the site. To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREEall relevant visitor-friendly services including invitation letter preparation, hotel reservation, airportpick-up, incity transportation, and sightseeing guide, etc.
After-sales Service
*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation
Company Introduction
advanced Manufacturer of Crushing &Grinding Machines Shanghai dingbo has always been committed to manufacturing mining crushing equipment, sand-making equipment and industrial grinding equipment.

History --- 20 years

Annual Output Value --- 100 million

1.Boasts its 30000 square meters production base

2.20 years industry experience

3.Owns complete modernized metal cutting equipment, equipped with advanced Solidworks 3D mechanical design and Computerized Simulation Test System

4.Professional technology and after-sales service team

5.Achieved ISO9001:2000 Quality Management Certificate and EU CE Certificate.

6.Have been exported to more than 130 countries

7.Products cover more than 20 models of 3 major series: mill series, crushing series, and sand making series.

Contact Us

Send Message or Chat Now for Latest price!!! Tips: please tell me your material and capacity to become our quality clients which will have 2%-10% discount please tell me the following questions, so we can send you accurate quotation with additional discount: ♥ What's the raw materials you want to process(such as granite, basalt, river stone)? ♥ What is capacity you want tons per hour? such as100TPH, 150TPH, 200TPH. ♥ Your email address or phone number ♥ Other requirements. (We are the leading manufacturer of mining machinery: jaw crusher, impact crusher, cone crusher, sand making machine, mobile crushing plant, vibrating feeder, vibrating screen, belt conveyor, raymond mill)

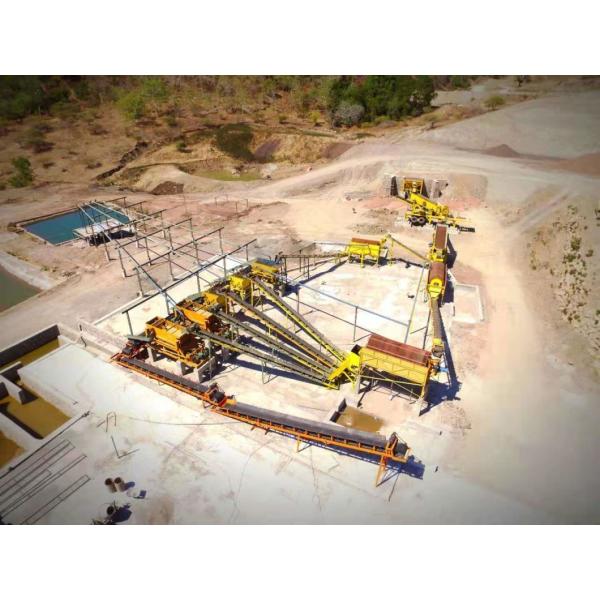

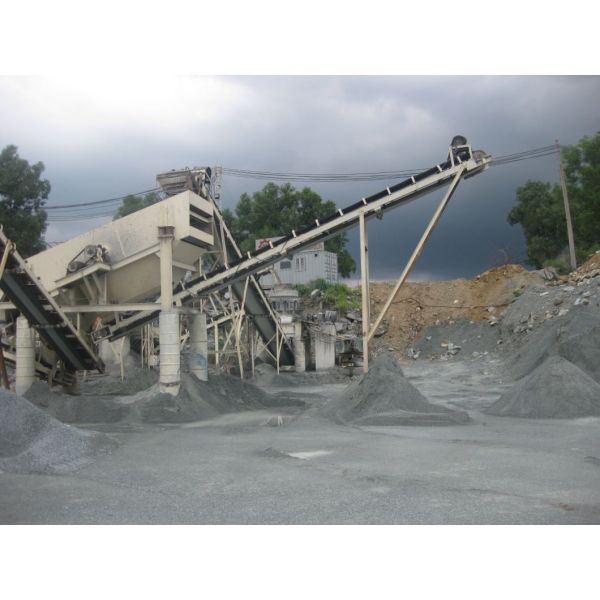

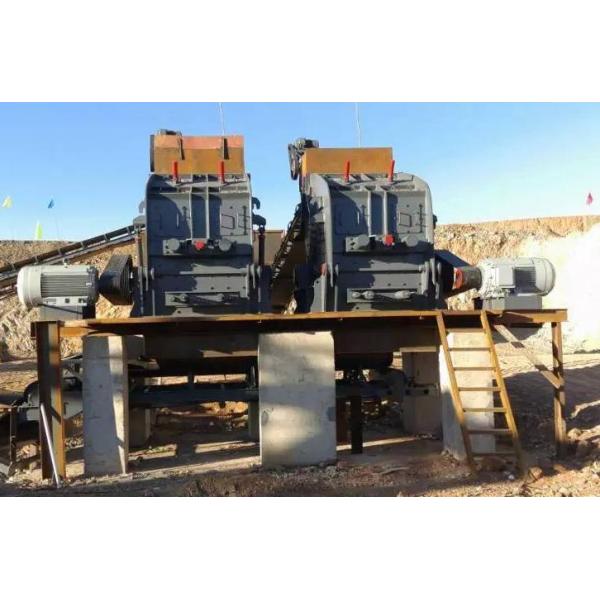

PF1315 Impact Crusher Suitable for Customer Requirements in Building Construction Images
