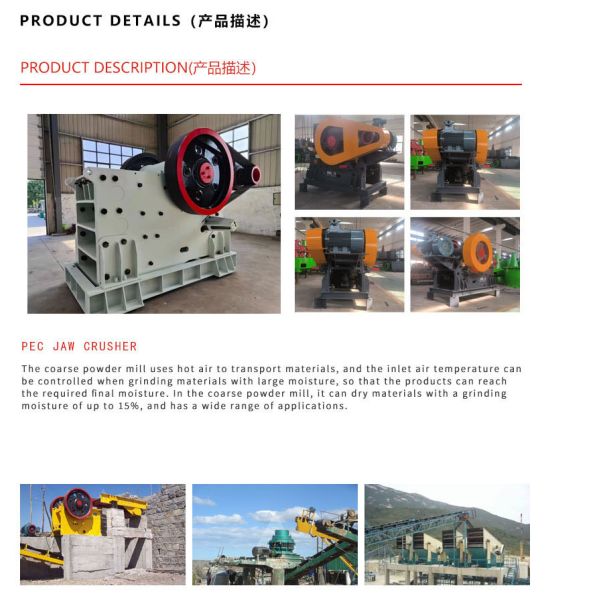

Based on many years' experience and technology development, Dingbo jaw crusher series are of 8 different types, which can meet most of the crushing requirements in primary and secondary crushing. Flexible discharge opening setting of jaw crusher allows perfect match with relative equipments. With larger feed openings and bigger crushing strokes, the Dingbo Primary Jaw Crusher are suitable for crushing big size lumps in large quantity. The stone jaw crushers are especially recommended for primary and concrete recycling, river stones, tough ores, for a very long life. From the welded steel base to the rugged eccentric shaft, the hydraulic Jaw Crusher are built with brute strength with quality bearings.
Characteristics of Jaw Crusher:
1. Optimized crushing cavity greatly improves feeding and crushing efficiency, saving energy by 15% -30%;
2. The larger heavy eccentric shaft, high manganese steel jaw plate and movable jaw assembly brings higher carrying capacity and stability.
3. Adopt the world's advanced manufacturing technology, digital analysis of components operating and precise internal structural greatly extend the lifespan of device.
4. The unique design of centralized lubrication system is more efficient for components lubrication but requires less maintenance.
5. Gasketed discharge adjustment of device permits larger adjustable range, which increases the flexibility of the device to meet the demand of customer in processing.
6. The device is in line with the national environmental standards, low noise with dust removal equipment, which is in full compliance with environmental requirements.
Working Principle:
This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
| Model | Feeding Opening Size
(mm) | Max.Feeding
Size(mm) | Adjustment Range of Discharging Opening (mm) | Capacity(t/h) | Power(kw) | Overall Drmension (mm) |
| PE-250×400 | 400×250 | 210 | 20-80 | 5-20 | 15 | 1430×1315×1296 |
| PE-400×600 | 600×400 | 350 | 40-100 | 15-65 | 30 | 1700×1732×1653 |
| PE-500×750 | 500×750 | 425 | 50-100 | 45-110 | 55 | 2035×1921×2000 |
| PE-600×900 | 900×600 | 480 | 65-140 | 90-180 | 55-75 | 2290×2206×2370 |
| PE-750×1060 | 1060×750 | 630 | 80-160 | 110-320 | 110 | 2655×2302×3110 |
| PE-900×1200 | 900×1200 | 750 | 100-200 | 200-400 | 132 | 3380×2870×3330 |
| PE-1000×1200 | 1000×1200 | 850 | 195-260 | 220-450 | 160 | 3480×3876×3330 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 180-220 | 4200×3750×3820 |
| PEX-150×250 | 150×250 | 125 | 10-40 | 1-5 | 5.5 | 875×758×850 |
| PEX-150×750 | 150×750 | 125 | 18-48 | 5-16 | 15 | 1200×1500×1200 |
| PEX-250×400 | 400×250 | 210 | 25-80 | 15-30 | 22-30 | 1667×1545×1020 |
| PEX-250×1000 | 1000×250 | 210 | 25-60 | 16-50 | 30-37 | 1530×1992×1380 |
| PEX-250×1200 | 1200×250 | 210 | 25-60 | 20-60 | 37 | 1900×2192×1430 |
| PEX-300×1300 | 1300×300 | 250 | 25-105 | 20-90 | 75 | 2720×1950×1600 |
Our Services
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales Service Support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological Support
Dingbo has been largely adopting new technologies, new techniques and high-tech equipments. And Dingbo also has strict and effective quality control system. We have obtained ISO9001:2000 quality system certificate.
Dingbo insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
Dingbo is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support, including material characteristic analysis, crushing test and process optimization of flow simulation. Our professional engineers will design the most reasonable scheme for the real production line.
